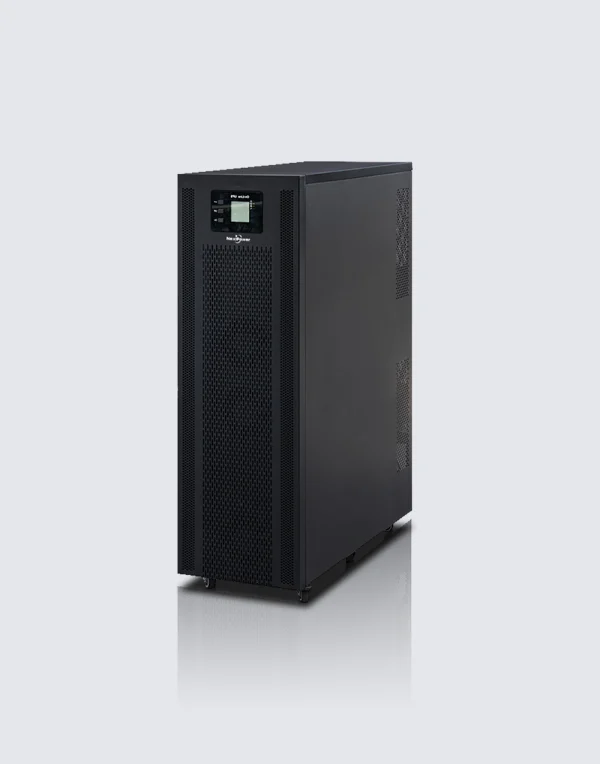

HT-A-33 Series Online UPS 60-80KVA

FEATURES

Advanced DSP digital control to make the control system more stable and reliable.
Double transform on-line design, adopting power factor coorrection (PFC) technology, input power factor is up to 0.9.
Output power factor is 0.9(0.8 is available optional),with higher actual load capacity to save users' investiment.
Intelligent charging management, ±16 ~ ±20pcs(32-40pcs) batteries to select.
Plentiful options, USB or RS485 communication interface, SNMP card (optional), parallel board (optional).
ECO working mode, high efficiency and energy saving reduce user's cost.
Parallel redundancy function, it enables to connect 4 units in parallel, and the battery pack can be shared in parallel.
Four modes (three phase , three-single phase, single-three phase, single phase).

Model	HT-A-33 60KL	HT-A-33 80KL
Rated Power	60kVA/54kW	80kVA/72kW
INPUT
Voltage Range	208-478Vac 3P4W+G
Working Frequency Range	45-55Hz at 50Hz/ 54-66Hz at 60Hz (self-adapting)
Input Power Factor	≥0.99
OUTPUT
Rated Voltage and Accuracy	380/400/415Vac(1±1%) 3P4W+G
Output Frequency	Synchronized with input ; mains frequency ≥ maximum ± 10%
	Output frequency is 50 (± 0.2%)Hz
	50/60 ± 0.2% (battery)
Rated Current	91A	121A
Output Power Factor	0.9
Output Harmonic Wave	≤2% liner ; ≤5% non-liner
Crest Factor	3 : 1
Output Overload	Load≤110%: 60 mins;Load≤125%: 10 mins;Load≤150%: 1 min; Load≥150% shutdown immediately
Transfer Time	0 ms (Normal mode ← → Battery Mode)
Efficiency	normal mode ≥ 94.5%
BATTERY
Rated Voltage	default ± 192Vdc
Quantity	32~40
Charging Current	20A (Max.)
Dimension (LxWxH) mm	865300960
OTHER
Weight	85.5kg
Working Temperature	0℃〜40℃
Altitude	<1500m
Storage	-25~55℃
Relative Humidity	0-95% （non-condensing）
* Product specifications are subject to change without further notice.
