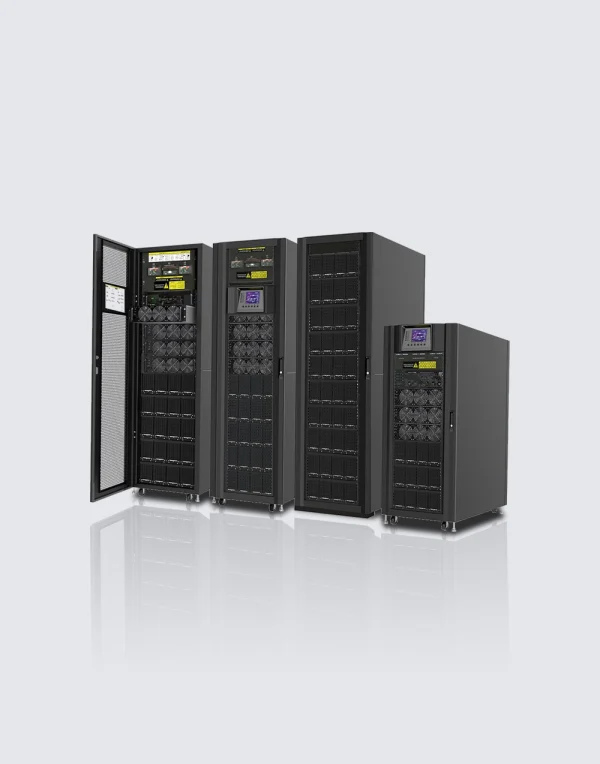

HM-C Series Modular Online UPS 60-300KVA

HM-C Series Modular Online UPS 60-300KVA
HM-C Series Modular Online UPS 60-300KVA
  1. HM-C Series Modular Online UPS 60-300KVA
  2. HM-C Series Modular Online UPS 60-300KVA

MAIN PARAMETERS

  • Input Voltage : 3 x 380VAC/400VAC/415VAC(3Ph+N).
  • Input Frequency : 40Hz~70Hz.
  • Output Voltage : 3 x 380VAC/400VAC/415VAC(3Ph+N).
  • Voltage Regulation (Steady state): ≦ ±1% Typical (balanced load); ≦ ±2% Typical (imbalanced load).
  • Overload Capability ：1 hour for 110%，10 mins for 120%,;1 min for 150%,200ms for >150%.
  • Harmonic Distortion : ≦ 1.5%THD (Linear Load) ; ≦ 4% THD (Non-linear Load).
Rating Index :
REQUEST A QUOTE
分类： , 标签： 品牌：

FEATURES

  • High efficiency online double conversion technology.
  • High scalability.
  • Unity output power factor.
  • Modular design lowers MTTR.
  • N+1 or N+X parallel redundancy for power guarantee.
  • Ease of installation and maintenance.
  • Flexible battery configuration adaptsdifferent applications.
  • Highly reliable operation with redundantpower supply in STS.
  • User-adjustable charging current.
  • High overload capability.
  • Graphic 5.7"LCD design for easy management.
  • Optional 10" touch LCD panel.

Model HM-C 90/15U HM-C 90/30U HM-C 120/42U HM-C 120/30U HM-C 180/30U HM-C 200/42U HM-C 210/42U HM-C 300/42U
Phase 3 Phase In / 3 Phase Out
Cabinet Capacity 90KW or 60KW 90KW 120KW 120KW or 80KW 180KW or 120KW 200 KW 210 KW 300KW
Battery Type External battery Built-in battery module ( optional ) External battery
One Power Module Capacity 30KVA/30KW 30KVA/30KW 30KVA/30KW Or 20KVA/20KW 20KW 30KVA/30KW
Or 20KVA/20KW
Max. Power Module No. 3 3 4 4 6 10 7+1 10
Max. Battery Set No. 3 3 5 —— —— —— —— ——
INPUT
Nominal Voltage 3 x 380VAC/400VAC/415VAC(3Ph+N)
Voltage Range 305~478 VAC at 100% load; 208~304VAC at <70% load
Nominal Frequency 50/60Hz (Auto Sensing)
Frequency Range 40Hz~70Hz
Power Factor >0.99 @100% Load , >0.98@50% Load
Harmonic Distortion (THDi) <3% @100% load
OUTPUT
Nominal Voltage 3 x 380VAC/400VAC/415VAC(3Ph+N)
Voltage Regulation(Steady state) ≦ ±1% Typical (balanced load); ≦ ±2% Typical (imbalanced load)
Nominal Frequency 50/60Hz
Frequency Range(Synchronized) 46Hz~54Hz or 56Hz ~64Hz
Overload Capability 1 hour for 110%，10 mins for 120%,;1 min for 150%,200ms for >150%
Harmonic Distortion ≦ 1.5%THD (Linear Load) ; ≦ 4% THD (Non-linear Load)
Efficiency Up to 94.5%
BATTERY / CHARGER
Nominal Voltage +/- 216V (12V x 36 pcs)
Maximum Voltage +/- 240V(12V x 40 pcs)
Minimum Voltage +/- 192V (12V x 32 pcs)
Float Charging Voltage 2.25V /Cell
Boost Charging Voltage 2.35V / Cell
Temperature Compensation Yes
Maximum Charging Current
(Per Power Module)		 8A for 30KW power module 8A 8A for 30KW power module 6A 8A 8A
6A for 20KW power module 6A for 20KW power module
PHYSICAL
Cabinet Dimension (D x W x H) mm 1100 x 514 x 763 1100 x 600 x 1475 1100 x 600 x 2010 1100x 600 x 1475 1100 x 600 x 2010
Net Weight (Kg) 183.5 or 182 675 932 335 or 333 437.5 or 434.5 625 549 620
ENVIRONMENT
Operating Temperature 0~40°C
Relative Humidity 0~95% non-condensing
Altitude <1000m for Nominal power
lP Protection lP20
MANAGEMENT
Smart RS-232/USB Supports Windows R2000/2003/XP/Vista/2008, WindowsR7/8/10,Linux and MAC
Optional SNMP Power management from SNMP manager and web browser
STANDARDS
Safety IEC/EN 60950-1; IEC/EN 62040-1
EMC lEC/EN 62040-2 Category C3
* When temperature is above 30C , the output power factor will be de-rated, 0.9 at 31C ~35C and 0.8 at 36C ~40℃.
* One battery module contains 10 pos of 12V/TAh or 12I9Ah sealed lead acid bateries in one tray.One complete battey set contains 4 battery modules.
* If the UPS is installed or used in a place where the atude is above than 1000m, the output power must be derated one percent per 100m.
* Product specifications are subject to change without further notice.
